    ADDERE – 1

    The ADDere SYSTEM I is a cutting-edge laser wire additive manufacturing system developed by MWES for high-precision metal 3D printing. It features a 6-axis industrial robot, a 2-axis coordinated motion workpiece positioner, a 4kW laser with an optical head, a wire delivery system, and a closed-loop control system for safety and monitoring. Housed in a Class 1 laser enclosure, this system supports the development of small, intricate metal parts. Capable of working with materials such as high-alloy steel, stainless steel, and Inconel, it also offers an optional argon environment for titanium and Invar.

    Overview

    The ADDere SYSTEM I is a cutting-edge laser wire additive manufacturing system developed by MWES for high-precision metal 3D printing. It features a 6-axis industrial robot, a 2-axis coordinated motion workpiece positioner, a 4kW laser with an optical head, a wire delivery system, and a closed-loop control system for safety and monitoring. Housed in a Class 1 laser enclosure, this system supports the development of small, intricate metal parts. Capable of working with materials such as high-alloy steel, stainless steel, and Inconel, it also offers an optional argon environment for titanium and Invar.

    Specification

    Specification Details
    Built Part Size (LxWxH) 1.0 x 1.0 x 1.0m / 40 x 40 x 40 in.
    Built Part Weight (Max) 400 kg / 880 lbs.
    Laser Power 4-12 kW
    6-axis Industrial Robot Included
    2-axis Workpiece Positioner Tilting axis ±90°, Rotational axis ±185°
    Precision Wire Feeding Solution Complete
    Deposition Rate Up to 10 lbs./h

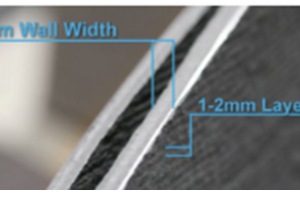

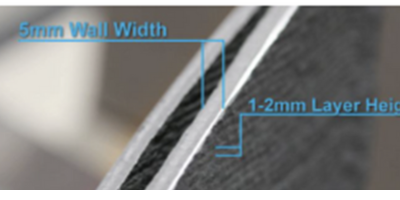

    Wall/Layer Size Typical 5-6mm pass width, 1-2mm layer height
    Sensor System Option Real-time, closed loop (IR weld pool monitoring, DSCS, dynamic profiling sensor) control with optional WALS software package
    Software Package ADDere by MWES
    Safety Enclosure Class 1
