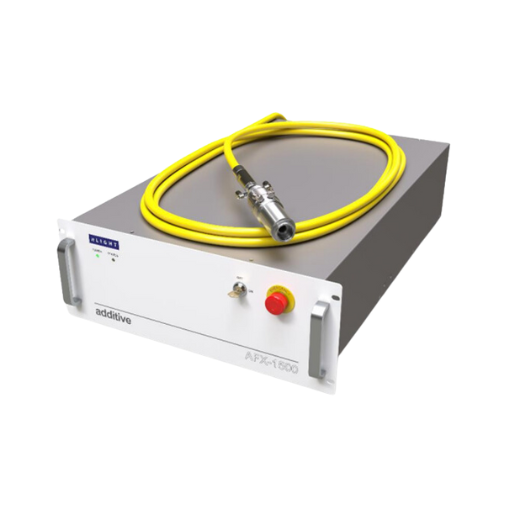

The AFX Programmable Fiber Laser from the nLIGHT® Corona™ series offers versatile beam switching, allowing you to alternate between a high-precision single-mode beam for detailed work and larger ring-mode beams for faster build rates. This flexibility boosts productivity, providing wider process windows and improved material quality for industrial applications.
The AFX Programmable Fiber Laser from the nLIGHT® Corona™ series offers versatile beam switching, allowing you to alternate between a high-precision single-mode beam for detailed work and larger ring-mode beams for faster build rates. This flexibility boosts productivity, providing wider process windows and improved material quality for industrial applications.
| Model | AFX-1000 | AFX-1500 |
|---|---|---|
| Optical | ||
| Mode of Operation | CW/Modulated | |
| Maximum Power, SM Setting | 1200 W | 1200 W |
| Maximum Power, MM Settings | 1200 W | 1500 W |
| 0.10 NA Power Enclosure | > 90% | |
| Power Tunability | 5 to 100% | |
| Power Variation, 8-Hour | < 1% | |
| Modulation Frequency | < 100 kHz | |
| Rise and Fall Times | < 5 µs | |
| Beam Profile Switching Time | < 30 ms | |
| Beam Diameter | Programmable (see table below) | |
| Wavelength | 1070 ± 10 nm | |
| Electrical | ||
| Supply Voltage | 200 to 240 VAC, single phase, 50/60 Hz | |
| Control Interface | External hardware control / RS-232 / Ethernet | |
| Mechanical | ||
| Dimensions (W x D x H) | 445 x 677 x 177 mm | |
| Optical Fiber | 5 or 10 m fiber with QBH connector | |
| Cooling Method | Water |
