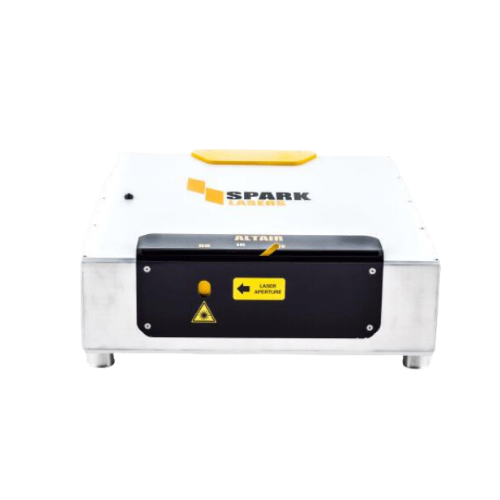

ALTAIR is a compact fiber laser delivering high average power with ultrashort femtosecond pulses in an ultra-compact and robust format. Its high stability and excellent beam quality make it ideally suited for multi-photon microscopy applications. The 1 µm wavelength range offers many benefits for bioimaging, including lower scattering and deeper penetration.
ALTAIR is a compact fiber laser delivering high average power with ultrashort femtosecond pulses in an ultra-compact and robust format. Its high stability and excellent beam quality make it ideally suited for multi-photon microscopy applications. The 1 µm wavelength range offers many benefits for bioimaging, including lower scattering and deeper penetration.
| Parameter | ALTAIR 1040-10 | ALTAIR 1040-20 | ALTAIR 1040-10-PP | ALTAIR 1040-10-VERSA |
|---|---|---|---|---|
| Wavelength | 1040 nm | 1040 nm | 1040 nm | 1040 nm |
| Average Power | 10 W | 20 W | 10 W | |
| Pulse Duration | < 150 fs | < 250 fs | ||
| Group Delay Dispersion | Adjustable from 0 to <-60,000fs2 | |||
| Repetition Rate | 80 ± 2 MHz | Adjustable from 1 to 40 MHz | Adjustable from 0 to 40 MHz | |
| Energy per Pulse | 125 nJ | 250 nJ | 250 nJ | Up to 1 μJ (10 W at 10 MHz) |
| M2 | < 1.2 | |||
| Options | ||||
| Wavelengths | Other wavelengths on request | |||
| GDD Extension | Adjustable from 0 to <-90,000fs2 | |||
| Ultra Short Pulse Duration (USP) | Pulse duration below 50 fs, 30 fs typical | |||
| Frequency Conversion | 520 nm or computer selectable 520/1040 nm through external SHG module | |||
| Repetition Rate | Any fixed frequency from 40 MHz to 80 MHz | |||
