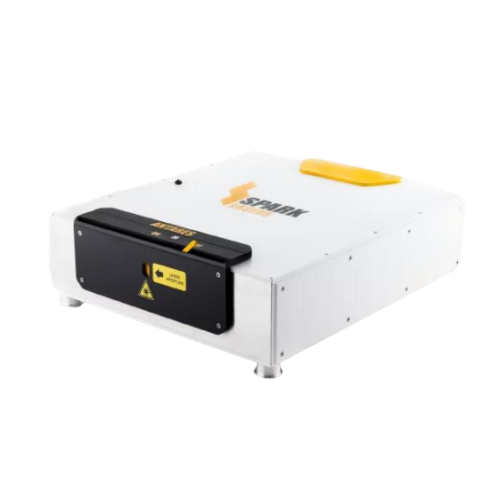

Antares : Compact High-Energy Picosecond Laser from Spark Lasers

ANTARES is an advanced picosecond laser that delivers high average power at high repetition rates of up to 80 MHz, along with a narrow linewidth, all in a compact and robust format.

Download Data Sheet Enquiry Now

Overview

Antares : Compact High-Energy Picosecond Laser from Spark Lasers
ANTARES is an advanced picosecond laser that delivers high average power at high repetition rates of up to 80 MHz, along with a narrow linewidth, all in a compact and
robust format

Specifications

Specification	ANTARES 1035-10	ANTARES 1035-20	ANTARES 1035-30
Wavelength	1035 +/- 5 nm	1035 +/- 5 nm	1035 +/- 5 nm
Average Power	> 10 W	> 20 W	> 30 W
Pulse Duration	< 10 ps	< 10 ps	< 10 ps
Repetition Rate	80 +/- 2 MHz	80 +/- 2 MHz	80 +/- 2 MHz
Energy per Pulse	> 125 nJ	> 250 nJ	> 375 nJ
M²	< 1.2	< 1.2	< 1.2
Options
Wavelength Options	1064 nm or other
Repetition Rate Options	Any fixed frequency from 20 MHz up to 80 MHz
Pulse Picker	To change repetition rate from 1 MHz up to 40 MHz
Power Modulation	To access repetition rates below 1 MHz and power modulation
Frequency Conversion	517 nm or computer selectable 517/1035 nm

Key Feature

Wavelengths: 1030 nm or 1064 nm (green and UV wavelength available through frequency conversion).
Average Power: From 5 W up to 40 W.
Pulse Duration: < 10 ps.
Repetition Rate: Up to 80 MHz.

Applications

Life Sciences.
Nonlinear Optics.
Instrumentation.
