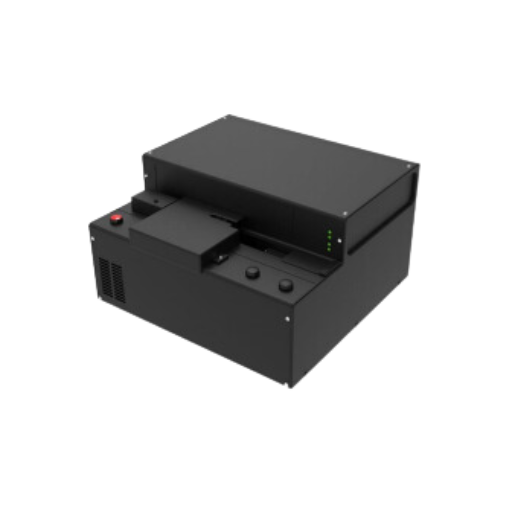

The AUTOPREP 2™ is a fully automated, high-speed fiber preparation unit that strips, cleans, and cleaves a fiber in less than 15 seconds. It is specifically designed for fast and chemical-free preparation of acrylate-based fiber coatings, adhering to the highest industrial standards for speed, consistency, extreme cleanliness, and high fiber strength . Optimal cleaves are achieved through a highly advanced and patent-pending cleaving process. ” generate the content paragraph.
v• AUTOPREP 2™ is a fully automated, high-speed fiber preparation unit that strips, cleans, and cleaves a fiber in less than 15 seconds.
• It is designed for fast and chemical-free preparation of acrylate-based fiber coatings, meeting the highest industrial standards for speed, consistency, extreme cleanliness, and high fiber strength.
• Optimal cleaves are achieved through a highly advanced and patent-pending cleaving process.
• Fast cycle time.
• 100% clean fiber.
• High strength.
• Low cleave angles < 0.5 degrees.
• Fully automated.
• Operator independent.
• Automatic fiber waste collection.
| Specification | Details |
|---|---|
| Cladding Diameter | 80 – 125 µm** |
| Coating Diameter | 160 – 400 µm** |
| Fiber Strength | Typical > 30 N on 125 µm fiber (355 kpsi)* |
| Fiber Cleanliness | Free of debris at 400x magnification |
| Cleaving Angle | Typical < 0.5 degrees |
| Cycle Time | Typical < 15 seconds*** |
| Power Supply | 115 or 230 V AC (50/60 Hz) |
| Compressed Air Supply | External compressor****, 6 Bar, 8 mm instant push-in fitting |
| PC Interface | RS-232 |
| Dimensions | 320 mm (W) x 310 mm (D) x 200 mm (H) |
| Weight | 12 Kg |
