Overview
The C-Band ASE Source is a member of our
ASE product family which covers a variety of
wavelength ranges, spectral shapes, and
output powers. All are available in convenient
form factors including: OEM Module and
Benchtop.
Hover
Hover
Hover
C-Band ASE Bench-top Source
The C-Band ASE Source is a member of our ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. All are available in convenient form factors including: OEM Module and Benchtop.
Specifications
| Parameter | Value |
|---|---|

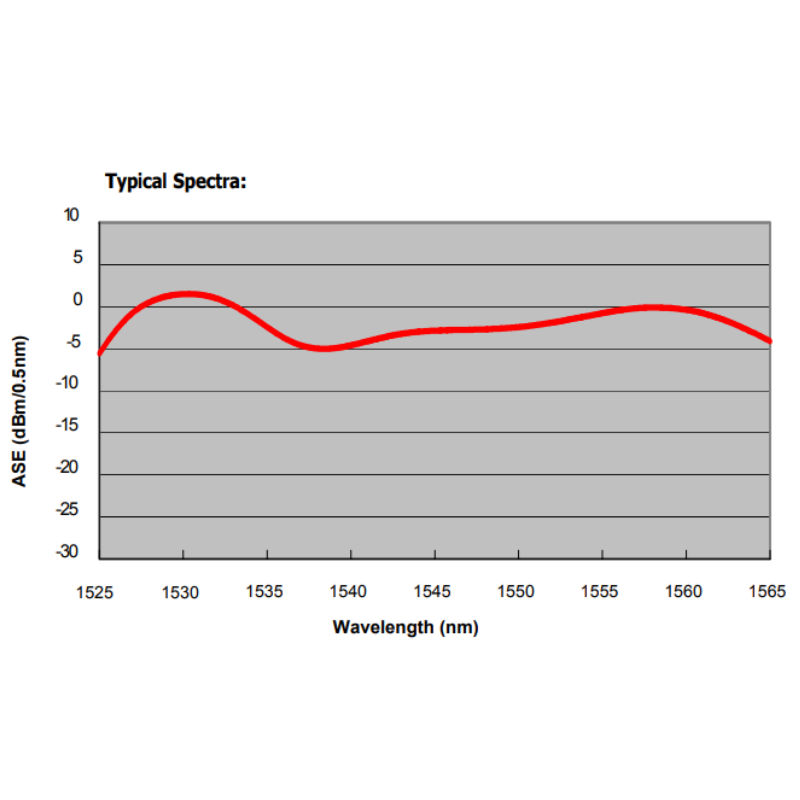

| Wavelength Range | 1525-1565 nm |
| Output Power | 7, 10, 13, 17 or 19 dBm |
| Spectral Power Variation (dB) | < ± 5 |
| Output Power Stability (dB) (1hr) at fixed 0°C | < 0.04 dB |
| Output Power Stability (dB) over 0-50°C | ± 0.2 |
| Output Polarization (Degree of Polarization) | < 5% |
| Power Consumption | <8.25 W, < 3W Typical |
| Supply Voltage | +3.3V ±5 |
| Supply Voltage Noise Level | <50mW pk-pk |
| Supply Current | 2.5A Max; 1A Typical (1) |
| Power Supply Capacitive Load | 250uF Decoupling Inside Unit |
| Optical Bandwidth @ 10 dB point | > 40 n |
| Package Dimension | 90 x 70 x 12 mm |
Key Feature
- Full C-Band Operation.
- 7, 10, 13, 17, & 19 dBm Operation.
- Wide Bandwidth.
- Integrated Pump Laser.
- Microprocessor Control.
Applications
• Sensing.
• Passive components testing.
• Bio-medical imaging Source.
• Spectroscopy.
