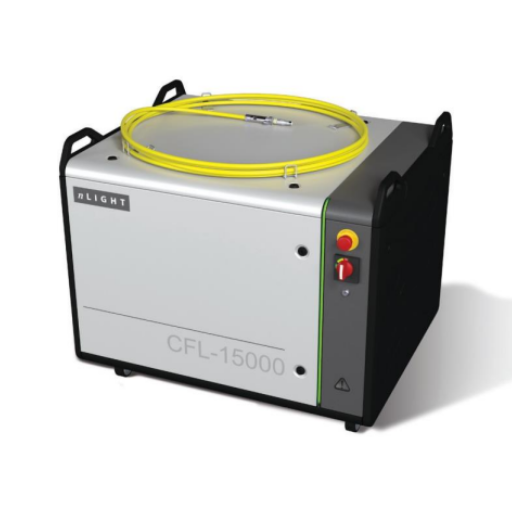

    CFL Series Standard Laser upto 20KW

    Compact and reliable for increasing efficiency and maximizing capability. The all-new nLIGHT® CFL-12000 and CFL-15000 are the highest power fiber lasers available in this form factor, allowing for better utilization of your shop floor. Compact and versatile, these lasers were designed with trusted and durable components for high operating efficiency in a wide range of materials processing applications. Based on nearly two decades of high-power laser innovation, this fiber laser features the latest in optical technology, allowing for exceptional, consistent part quality and increasing the capability of different metals and thicknesses that can be cut by the job shop.

    Overview

    High Power Fiber lasers – Compact, Reliable, efficient .​
    Compact and versatile, we designed our lasers with trusted and durable
    components for high operating efficiency in a wide range of materials
    processing applications. Based on nearly two decades of high-power laser
    innovation, our fiber lasers feature the latest in optical technology, allowing
    for exceptional, consistent part quality and increasing the capability of
    Different metals and thicknesses that can be cut by the job shop

    Specifications

    Models CFL-12000 CFL-15000
    Optical Specifications
    Mode of Operation CW/Modulated
    Polarization Random
    Maximum Average Power, CW 12kW 15kW
    Power Tunability 5 – 100%
    Power Variation, 8-Hour ≤ 1%
    Modulation Frequency ≤ 20kHz
    Rise and Fall Times ≤ 10µs
    Beam Quality 100µm fiber ≤ 5mm-mrad 200µm fiber ≤ 11.0mm-mrad
    Wavelength 1070 ± 10nm
    Electrical Specifications
    Supply Voltage 400 – 480VAC 3P+PE, 50/60Hz
    Control Interface, Standard External hardware control, analog power control, analog monitors, Ethernet control, GUI, and API
    Control Interface, Optional EtherCAT, EtherNet/IP, DeviceNet, Profinet, Profibus
    Mechanical Specifications
    Dimensions (W x D x H) 1004 × 804 × 701mm
    Optical Fiber 10, 15, 20m, QD connector standard
    Cooling Method Water
    Environmental Specifications
    Operating Temperature +10 to +40°C
    Storage Temperature -10 to +60°C
    Relative Humidity 10 to 80%

    Key Feature

    • 12-15kW Delivers excellent productivity for more parts per day and increased profits.
    • Back-Reflection Protection Hardware-based back-reflection protection allows uninterrupted processing of even the most reflective metals with no damage to the laser.
    • Unparalleled Serviceability Modular design simplifies repairs and maximizes uptime.
    • Designed for Rugged Durability Ensures continuous operation in harsh manufacturing environments.
    • Advanced Electronic Design Provides faster piercing and processing of fine features with smaller heat-affected zones.
    • Multiple Fiber Options Choice of feed fiber sizes from 100-200μm enables a diverse range of applications.
