Specifications

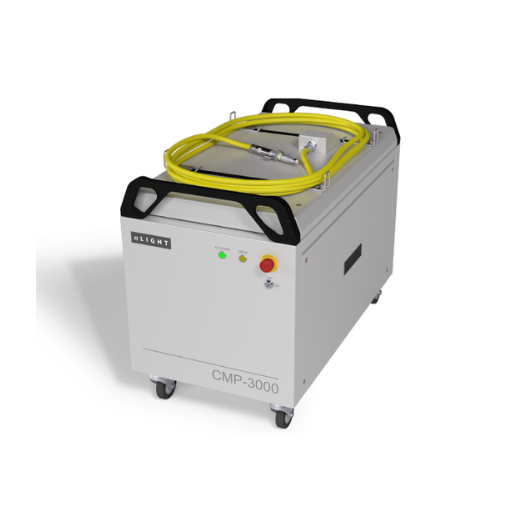

| Models | CMP-2000 | CMP-2500 | CMP-3000 |
|---|---|---|---|
| Optical Specifications | |||
| Mode of Operation | CW/Modulated | ||
| Polarization | Random | ||
| Maximum Average Power | 2kW | 2.5kW | 3kW |
| Power Tunability | 5 – 100% | ||
| Power Variation, 8-Hour | ≤ 1% | ||
| Modulation Frequency | ≤ 100kHz | ||
| Rise and Fall Times | ≤ 5µs | ||
| Beam Quality | 50µm fiber ≤ 2.3mm-mrad 100µm fiber ≤ 4.0mm-mrad 200µm fiber ≤ 11.0mm-mrad | ||
| Wavelength | 1070 ± 10nm | ||
| Electrical Specifications | |||
| Supply Voltage | 380 – 480VAC (5-wire 3 phase), 50/60Hz | ||
| Control Interfaces, Standard | External hardware control, RS-232, Ethernet | ||
| Control Interfaces, Optional | EtherCAT, Ethernet/IP, DeviceNet, Profinet, Profibus | ||
| Mechanical Specifications | |||
| Dimensions (W x D x H) | 445 x 927 x 625mm | ||
| Optical Fiber | 10, 20, 30m, QBH connector standard | ||
| Cooling Method | Water | ||
| Environmental Specifications | |||
| Operating Temperature | +10 to +40°C | ||
| Storage Temperature | -10 to +60°C | ||
| Relative Humidity | 10 to 80% | ||
