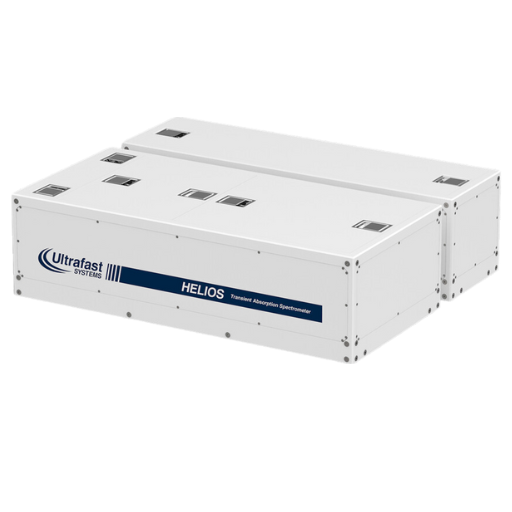

    Helios (Femtosecond Transient Absorption Spectrometer)

    HELIOS is an automated femtosecond Transient Absorption Spectrometer. It is designed to work with a variety of amplified femtosecond lasers, including high energy Ti:Sapphire amplifiers and high repetition rate Yb amplifiers. It offers spectral probe coverage from 350 – 2400 nm with femtosecond time resolution over an 8 ns time window. Together with their patented optical delay line, HELIOS delivers an unmatched level of performance and user-friendliness. With EOS upgrade, it offers the extended measurement window up to ms range

    Download Data SheetEnquiry Now

    Overview

    HELIOS is an automated femtosecond Transient Absorption Spectrometer. It is designed to work with a variety of amplified femtosecond lasers, including high energy Ti:Sapphire amplifiers and high repetition rate Yb amplifiers. It offers spectral probe coverage from 350 – 2400 nm with femtosecond time resolution over an 8 ns time window.

    Together with their patented optical delay line, HELIOS delivers an unmatched level of performance and user-friendliness.

    With EOS upgrade, it offers the extended measurement window up to ms range

    Key Features

    • Broad Probe Spectral Range (UV-VIS-NIR-SWIR).
    • Extendable Time Window up to ms.
    • Built-in Automation for Alignment and spectral range switching.
    • Large Sample Compartment.
    • Versatile and User-friendly Software.

    Specification

    Probe spectral range 280 – 2400 nm (With Ti: Sapphire Lasers)
    350 – 2000 nm (With Yb Lasers)
    Intrinsic spectral resolution 2 nm (UV-VIS)
    5 nm (NIR)
    5 nm (SWIR)
    Optical delay line
    • Time window: 8 ns (extendable to ms)
    • Resolution: 14 fs
    • Automated alignment time: 3–5 min
    • Beam pointing drift: < 10 μm over 8 ns delay range
    Detectors
    • CCD (UV-VIS, 200 – 1000 nm)
    • CMOS (UV-VIS, 200 – 1000 nm)
    • InGaAs (NIR, 800 – 1600 nm)
    • InGaAs (SWIR, 1600 – 2400 nm)

    Applications

    • Photophysics
    • Materials science
    • Photochemistry
    • Nanoscience
    • Photobiology
    • Transient spectrometry
    • Cell biology
