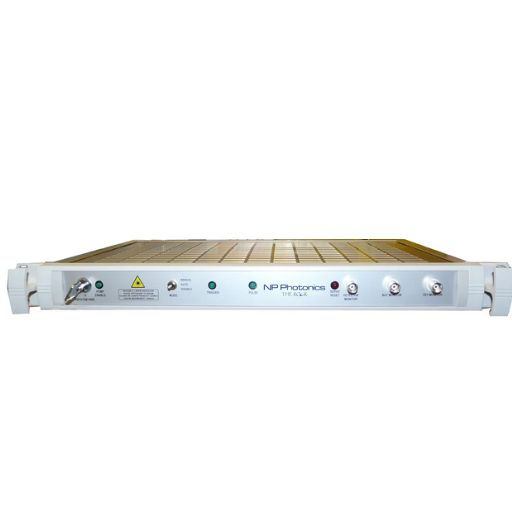

    Injection Seeder Systems
    Full Screen

    Injection Seeder Systems

    Specifications

    Parameter Value
    Wavelength Range 1530–1565, 1030–1080 nm
    Output Power 10mW *
    Longitudinal Mode Single Frequency
    Spectral Line Width < 5kHz
    Polarization Extinction Ratio (PER) > 20d
    Tuning Range (Thermal) 30GHz
    Connectors Fiber Connectors and Free Space Collimator
    Package Dimension 265.8 x 482.7 x 44.1mm

    Key Features

    • Very narrow linewidth (long coherence length).
    • 10 mW output power.
    • Single longitudinal mode.
    • Single polarization operation.
    • Integrated Electronics for build-uptime (BUT) reduction.
    • PZT and PZT mount included.
    • Integrated noise reduction.
    • High wavelength stability.
    • Integrated system.
    • Microprocessor control.
    • Thermal wavelength tuning.
    • No additional noise.
