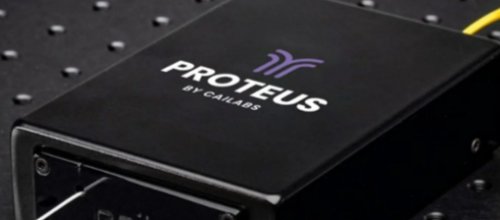

The PROTEUS-S efficiently multiplexes multiple signals from standard optical fibers into several modes within a single output fiber. Offering the same high optical performance as the PROTEUS range, it is optimized for commercially available optical fibers, making it a cost-effective solution for various applications.
The PROTEUS-S efficiently multiplexes multiple signals from standard optical fibers into several modes within a single output fiber. Offering the same high optical performance as the PROTEUS range, it is optimized for commercially available optical fibers, making it a cost-effective solution for various applications.
| Description of the component | Space Division Multiplexer (MUX) | ||
|---|---|---|---|
| Number of modes @1550 nm | 6 | 10 | 15 |
| Mode types @1550 nm | LP, HG | ||
| Wavelength | 1550 nm (C-band) | ||
| Insertion loss / Mux | Typ. 3 dB Max. 4 dB |
Typ. 4.5 dB Max. 5 dB |
Typ. 5 dB Max. 6 dB |
| Crosstalk / Mux | Typ. -23 dB Max. -18 dB |
Typ. -21 dB Max. -15 dB |
Typ. -19 dB Max. -13 dB |
| Input fiber type | SMF-28e | ||
| Input fiber length | 1 meter | ||
| Input connector types | LC/PC or FC/APC | ||
| Output fiber type | 4 LP mode step-index fiber by Prysmian or graded-index by OFS, or 50/125 µm (OM2) multimode fiber | 6 LP mode graded-index fiber by Prysmian, or 50/125 µm (OM2) multimode fiber | 50/125 µm (OM2) multimode fiber |
| Output fiber length | 10 meters | ||
| Operating temperature | [15 – 25]°C | ||
| Dimension (mm) | 130x94x35 mm | ||
| Storage environment | Non-condensing environment | ||
