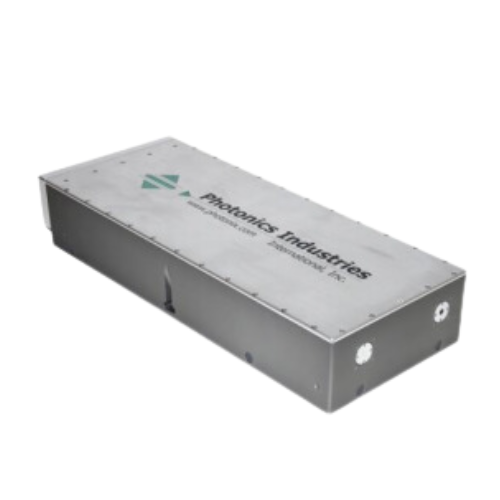

RX3 Series: High Power Picosecond Lasers
RX3 Series high power picosecond lasers offer ideal performance, and the smallest overall form factor in the
market of industrial picosecond lasers.
Hover
RX3 Series: High Power Picosecond Lasers
RX3 Series high power picosecond lasers offer ideal performance, and the smallest overall form factor in the
market of industrial picosecond lasers.
Specifications
| Models | IR | GRN | UV |
|---|---|---|---|
| RX3-1064-150 | RX3-532-100 | RX3-355-50 | |
| Wavelength | 1064 nm | 532 nm | 355 nm |
| Output Power | 150W | 100W | 50W |
| Pulse Width | ~10 ps | ~7 ps | ~7 ps |
| Pulse repetition rate | Single shot to 2 MHz (option up to 15 MHz) | ||
Key Feature
- Wide range of wavelengths: 1064 nm, 532 nm, 355 nm, MWB, MWS, & 266 nm options on request.
- Highest power picosecond laser in the smallest, all-in-one (AIO) form factor on the market.
- Short pulse laser: ~10 ps for IR, ~7 ps for Green & UV Option up to ~30 ps available.
- High repetition rates: Up to 15 MHz.
- High efficiency picosecond laser with low power consumption:~1000 W typical.
- Exceptional and Versatile Pulse Control:
-
- PEC (Power or Pulse Energy Control).
- PSO (Position Synchronized Output) mode for external triggering to any arbitrary PRF while maintaining a constant, stable pulse energy with low jitter.
- Burst Mode for individually controllable pulses in burst envelopes of up to 10 pulses with intra-burst pulse separation of ~31 ns.
- POD (Pulse-On-Demand) pulse bursts can be triggered internally, externally, or continuously, while maintaining constant pulse energy.
Applications
- Cutting/Drilling/Scribing Thin Metal/Metal Foil, Ceramic, Glass, Ultra Thin Glass (UTG), Plastic, Glass-reinforced Plastic.
- Flat Panel Display, LCD/LED/OLED Cutting.
- Brittle Material Microprocessing.
- Selective Laser Ablation of Thin- Films.
- Medical Stents, Medical Device Laser Microprocessing.
- Flexible Printed Circuit Boards (FPCB), Printed Circuit Boards (PCB) Microprocessing.
- Hydrophobic Material Manufacturing, Hydrophilic Material Manufacturing, Ultrafast Laser Assisted Etching (ULAE) Systems.
