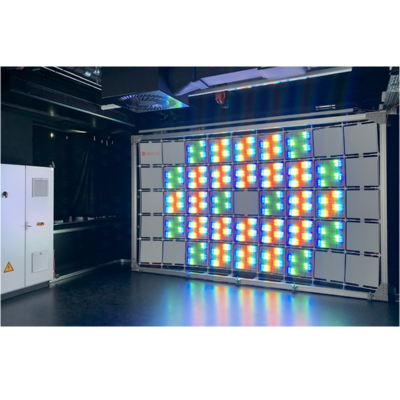

    SINUS-3000 ADVANCED
    Full Screen

    Sinus-3000 Advanced Module Tester for R&D

    The SINUS-3000 ADVANCED is the ultimate I-V testing solution for solar modules that meets calibration lab level requirements. Exceeding class A+A+A+, it is designed to output very stable, homogeneous, high spectral quality light, making it the ideal solar simulator for characterizing solar modules based on high efficiency and tandem cell technology.

    Download Data SheetEnquiry Now

    Overview

    The SINUS-3000 ADVANCED is the ultimate I-V testing solution for solar modules that meets calibration lab level requirements. Exceeding class A+A+A+, it is designed to output very stable, homogeneous, high spectral quality light, making it the ideal solar simulator for characterizing solar modules based on high efficiency and tandem cell technology.

    HIGHLIGHTS:

    • The LED Advantage: Industry leading spectrum quality and spectral match to AM1.5G.
    • World-Class Light Engine: Class A+A+A+ (IEC 60904-9), for spectral match, non-uniformity and temporal stability.
    • Optional PL/EL camera: To display material defects and document degradation effects.
    • Uniformity in every color: ensures that every cell in the module receives the same spectrum at the same intensity.
    • Wide range of exposure times: Pulsed or continuous illumination.
    • Optional fully integrated climate chamber: As an option, to control the sample temperature at STC or to determine performance as function of temperature.

    Key Features



    Spectrum AM1.5g, AM0 or other customer-defined spectrum including illumination by single colors
    SPD ≤ 25%
    SPC ≥ 98%
    Irradiance time Adjustable from 50 ms up to continuous illumination
    Flash-to-flash time interval 2 s
    Intensity Qualified intensities (flash mode): 0.3 suns, 0.5 suns, 1 sun, 1.3 suns
    Qualified intensities (continuous illumination): 0.3 suns, 0.5 suns, 1 sun, 1.1 suns
    Intermediate intensities can be set individually
    Maximum intensity can be increased by integrating more LED boxes
    Voltage/Current resolution 0.025%
    I-V measurement up to 80 V, 24 A, 750 W or customized
    I-V curve measurement duration As required: 10 ms and longer
    Distance light engine – 7,000 mm test area 7,000 mm
    Test area 2,300 x 1,400 mm² or customized

    Classification



    SINUS-3000 ADVANCED Class A+A+A+ requirements (IEC 60904-9 Ed. 3)
    Spectral match Class A++
    0.95 – 1.05    		 0.875 – 1.125
    Nonuniformity of irradiance Class A++
    < 1%    		 < 1%
    Short-term instability (STI) Class A++
    Synchronized    		 Synchronized
    Long-term instability (LTI) flash length < 0.3 s Class A+++
    < 0.25%    		 < 1%
    Long-term instability (LTI) flash length > 0.3 s Class A++
    < 1%    		 < 1%

    Highlights

    • The LED Advantage: Industry leading spectrum quality and spectral match to AM1.5G.
    • World-Class Light Engine: Class A+A+A+ (IEC 60904-9), for spectral match, non-uniformity and temporal stability.
    • Optional PL/EL camera: To display material defects and document degradation effects.
    • Uniformity in every color: ensures that every cell in the module receives the same spectrum at the same intensity.
    • Wide range of exposure times: Pulsed or continuous illumination.
    • Optional fully integrated climate chamber: As an option, to control the sample temperature at STC or to determine performance as function of temperature.
