Key Features
Light Engine Features:
The light engine consists of LEDs with 24 different peak wavelengths. A special optical lens system ensures perfect color mixing for each spot on the solar cell. Built-in spectrometer and intensity sensor in combination with calibration routine make re-calibration very simple.
| Light source |
19 individually controlled LED channels to create the desired spectrum |
| SPD |
≤ 21% |
| SPC |
≥ 98% |
| Ready for tandem cells |
Additional LEDs between 600 – 800 nm for probing the SR transition of the top and bottom cell (e.g., Si-Pero tandem cells) |
| Special optical lens system |
The multi-level special optical lens system ensures perfect mixing of all wavelengths, illuminating each spot with the identical spectrum |
| Feedback system |
Built-in intensity sensor measures total intensity multiple times per measurement, with on-the-fly adjustments |
| Spectrum |
AM1.5g, AM0, or customer-defined spectrum including single LED channel irradiation |
| Spectral control |
Built-in spectrometer monitors current spectrum for any flash length, displayed on GUI |
| Intensity range for AM1.5g |
Qualified intensities: 0.5, 1.0, 1.3 suns; intermediate intensities can be set individually |
| Intensity range for each single LED channel |
Adjustable from 10% up to 100% |
| Irradiance time |
Adjustable from 10 ms up to 250 ms |
| Test area |
260 mm x 260 mm (non-uniformity <1%) |
| Cooling |
Air-cooling for high stability and large lifespan |
| Expected LED box life span |
More than 2 years under standard inline operating conditions |
I-V Electronics Features:
The very fast active electronic load allows 4 quadrant measurements. A 14-bit calibrated Analog-Digital converter and calibrated, traceable shunt resistor fulfill the highest demands for accuracy and precision.
| Voltage resolution |
0.025% of 2 V / 20 V |
| Current resolution |
0.025% of 250 mA / 2.5 A / 25 A |
| Static Repeatability [(max-min)/(max+min)] |
Isc: 0.03%, Voc: 0.03%, FF: 0.075%, PMPP: 0.075% |
| I-V curve measurement time |
Adjustable from 20 ms up to 250 ms |
System Features:

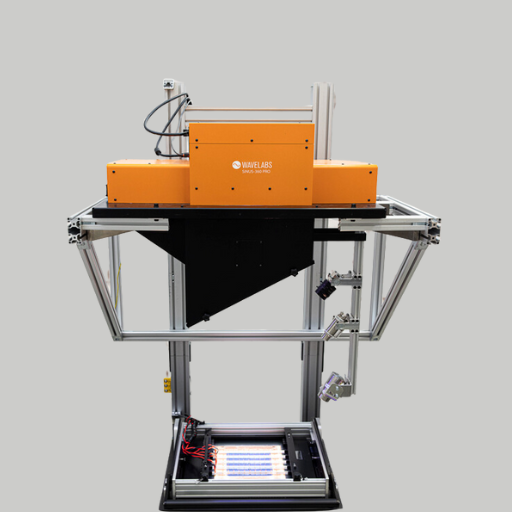

SINUS-360 PRO is designed for high-precision and low-maintenance operation in high-speed production lines.
| Measurement times for standard recipe (1 sun, 0.5 sun, dark, EL) |
Typically around 190 ms; fast even for high-capacitance cells like HJT, IBC, TOPCon with RapidWAVE® |
| Sorting |
As required: up to 256 classes |
| Communication for inline integration |
Via hardware signals, RS232, TCP/IP, ProfiNET |
| Control levels |
Operator or engineer levels |
| User interface |
Monitor, keyboard, mouse |
| Industrial PC |
OS Windows |
| RapidWAVE® |
Overcomes hysteresis effect of high-capacitance solar cells, enabling high throughput with accurate IV measurements |
| Required environment |
22.5 °C < T < 30 °C, 40-60% humidity (non-condensing), max humidity change 1%/h |
