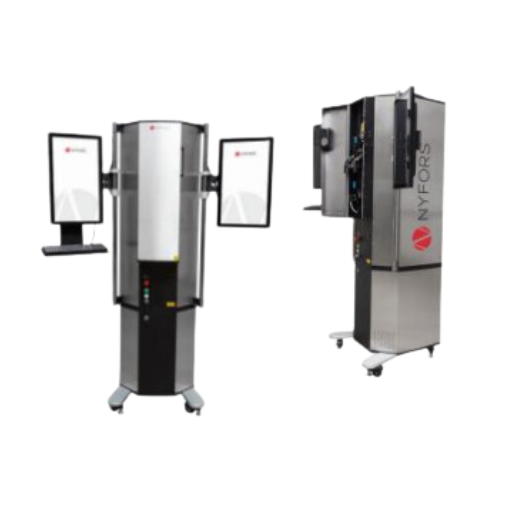

The SMARTSPLICER™ is an advanced laser fusion splicing and glass processing system, ideal for producing high-power and sensitive photonic components. It features a powerful, clean laser heat source, allowing for contamination-free glass shaping with minimal maintenance and no need for consumables like process gas, filaments, or electrodes.
The SMARTSPLICER™ is an advanced laser fusion splicing and glass processing system, ideal for producing high-power and sensitive photonic components. It features a powerful, clean laser heat source, allowing for contamination-free glass shaping with minimal maintenance and no need for consumables like process gas, filaments, or electrodes.
| Specification | Details |
|---|---|
| Heating Source | Ring-shaped CO2 laser beam |
| Laser Safety | Emergency laser cut-off; Class 1 laser system; Optionally configured to Class 4 |
| Laser Beam Shaping | Laser ring focus and diameter directly controllable by operator |
| Laser Beam Control | High power stability; Optional feedback system can be equipped |
| Applicable Fiber Diameter | 80 μm to 2500 μm |
| Typical Splice Loss | < 0.1 dB |
| Typical Splice Strength | Same as original material |
| Applicable End Cap Diameter | 1 to 60+ mm |
| Cameras | Two side view cameras for alignment processes; Field of view: 2.68 mm horizontal & 3.56 mm vertical; Optional bottom view camera for end cap alignment; Optional end view camera for PM and PCF fiber alignment |
| Measurement Capabilities | Measurement of processes and final component with cameras; Force sensors for process control; Optional additional measurement equipment |
| Tool Holders | NYFORS fiber holders (optional); End cap holders (optional); Rotators for PM and PCF fibers (optional) |
| X/Y Stage Resolution | 0.02 μm |
| Maximum Z Travel Length | 180+ mm |
| Z Travel Resolution | 0.4 μm (optional 0.025 μm) |
| Maximum Taper Ratio | 1:10 |
| Taper Speed | Typically 2 mm/s |
| Device Control | Complete control with built-in computer and specialized software; USB connection; optional network capabilities; optional PCI-express cards |
| Electric Power | 100 – 240 V AC |
• PCF, Hollow core, Multi core fibers, LMA.
• AR-coated fibers and end caps.
• Beam delivery splicing / coupling.
• High power applications.
• Fiber lasers and amplifier manufacturing.
• Diode lasers.
• Industrial, R&D, Scientific, Astronomy, Optical metrology,Photonics, Medical, Telecom.
• Quantum technology, Directed Energy.
• Laser material processing.
