Overview
MPI TS300-PCB is a 300 mm Manual PCB Probe System for accurate and reliable RF and mmW Measurements on PCB Boards.
Hover

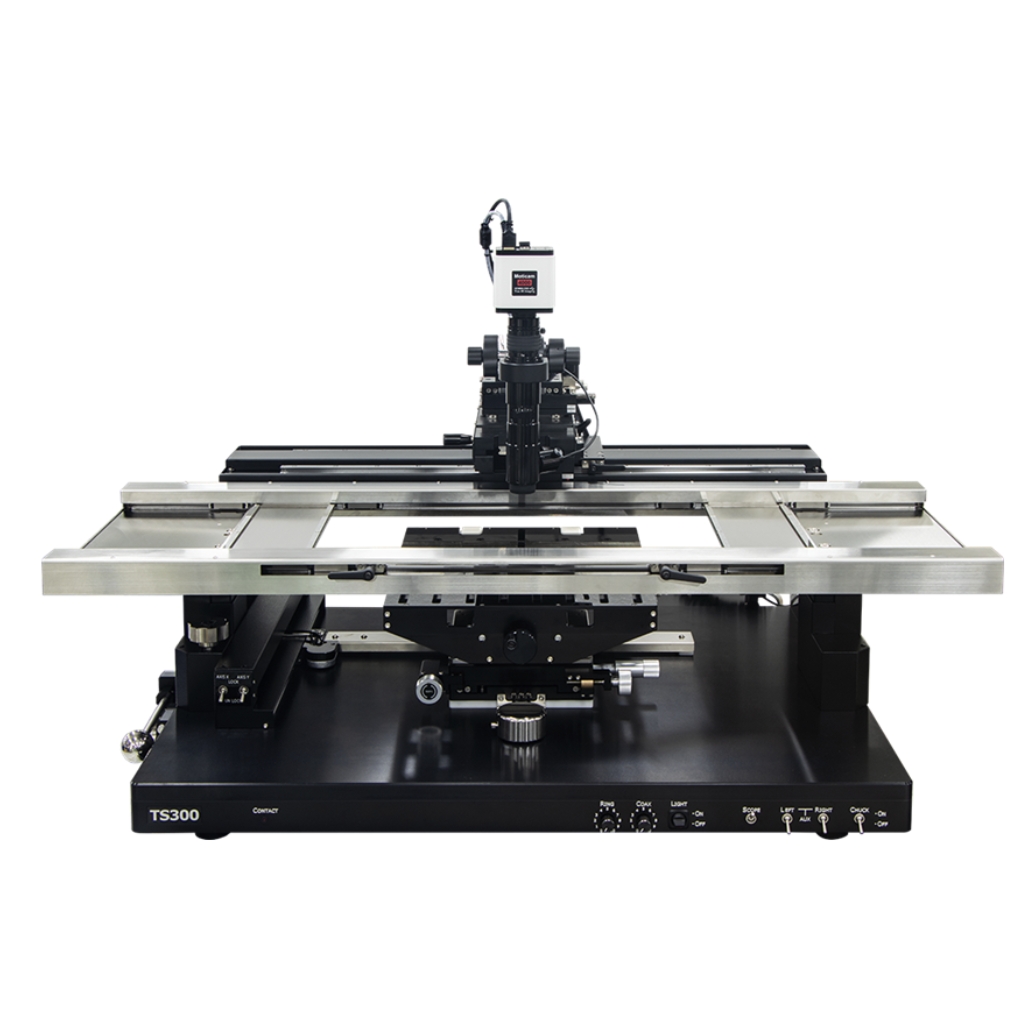

TS300-PCB
MPI TS300-PCB is a 300 mm Manual PCB Probe System for accurate and reliable RF and mmW Measurements on PCB Boards.
Key Features
Dedicated Use
- Designed for PCB probing in various DC/CV and RF measurement configurations.
- Signal integrity.
- SENTIO® option for efficient probing through microscope automation.
- PCB holders from 2” x 2” to 24” x 20” size.
- Integrated AUX chucks for RF calibration.
Ergonomic Design
- Unique puck controlled air bearing stage for quick single-handed operation.
- Rigid platen accommodates up to 10 DC or 4 RF positioners.
- Highly repeatable platen lift design with three discrete positions for contact, separation, and loading.
Upgradability
- Available with various chuck options and wide range of accessories such as DC/RF/ mmW MicroPositioners, Optics, microscopes and EMI shielded dark box to support various application requirements.
Specification
| Chuck Stage Movements | ||
|---|---|---|
| Total travel range | 330 x 395 mm (13.0 x 15.6 in) | |
| Fine-travel range | 25 x 25 mm fine micrometer control | |
| Fine-travel resolution | < 1.0 µm (0.04 mils) @ 500 µm/rev | |
| Planarity | < 10 µm | |
| Theta travel (standard) | 360° | |
| Theta travel (fine) | ± 5.0° | |
| Theta resolution | 7.5 x 10-3 gradient | |
| Movement | Puck controlled air bearing stage | |
| Fine travel option | XYZ Programmable* | XYZ manual |
| XY – Travel range | 50 x 50 mm | 50 x 50 mm |
| Resolution | 1 µm (0.04 mils) | < 5 µm (0.2 mils) |
| Repeatability | < 2 µm (0.08 mils) | N/A |
| Accuracy | < 5 µm (0.2 mils) | N/A |
| Z – Travel range | 140 mm linear | 90 degree tilt |
| Resolution | 0.05 µm (0.002 mils) | N/A |
| Repeatability | < 2 µm (0.08 mils) | < 2 µm (0.08 mils) |
| Accuracy | < 4 µm (0.16 mils) | N/A |
