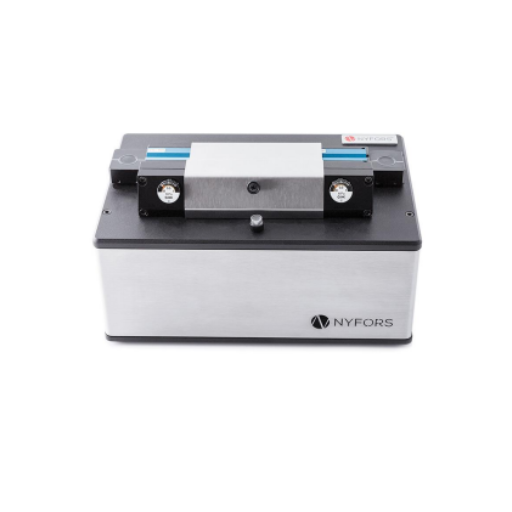

The PROOFTESTER™ is a compact and lightweight instrument designed for testing the strength of optical fibers, capable of handling loads up to 30 N. It is engineered to meet a variety of applications where reliable strength testing is essential.
The PROOFTESTER™ is a compact and lightweight instrument designed for testing the strength of optical fibers, capable of handling loads up to 30 N. It is engineered to meet a variety of applications where reliable strength testing is essential.
• Fully automatic, easy to operate.
• High pulling force.
• Logging of test data.
• Compact design.
• PC controlled.
| Specification | Details |
|---|---|
| Fiber cladding | 160–900 μm |
| Tensile test | 1-30 N |
| Resolution | 0.1 N |
| Pulling speed | 20-100 mm/min |
| Hold time | 0-10 s |
| Power supply | External 12 V DC, 15 W |
| Compressed air supply | External compressor*, 5-7 bar, 4 mm tube instant push-in fitting |
| Dimension | 210 mm (W) x 138 mm (D) x 110 mm (H) |
| Weight | 2.3 kg |
